What is Mold Inserts? Complete Guide for 2025
| Key Takeaways About Mold Inserts | |
|---|---|
|
|
Have you ever wondered how plastic parts get their remarkable strength and functionality? The secret often lies in something called mold inserts. These small but mighty components are revolutionizing manufacturing across industries, from the smartphone in your pocket to the car you drive.
As experts in injection molding automation, we at Wanfur Industry Co., Ltd have spent over 14 years perfecting the art and science of mold inserts. In this comprehensive guide, we’ll walk you through everything you need to know about these essential manufacturing components in simple, easy-to-understand terms.
Let’s explore how these tiny elements make a massive difference in product quality, manufacturing efficiency, and your bottom line.
What is Mold Inserts?
Mold inserts are precision-made components that manufacturers place inside a mold cavity before injecting plastic material. When the molten plastic flows into the mold, it surrounds and bonds with these inserts, creating a single integrated part that combines the best properties of both materials.
The Basics of Mold Inserts Explained Simply
Think of mold inserts like chocolate chips in cookie dough. Just as you add chocolate chips before baking to create a more delicious cookie, manufacturers add inserts before molding to create stronger, more functional plastic parts.
These inserts can come in various shapes and sizes, including:
- Square
- Circular
- Flat
- Custom geometric shapes
Each shape serves a specific purpose depending on what the final product needs to do. For example, threaded inserts allow plastic parts to connect securely with screws, while metal bushings provide wear resistance in high-friction areas.
“Mold inserts represent one of the most significant innovations in modern manufacturing. They allow us to create complex, multi-material parts in a single step that would otherwise require multiple assembly operations,” explains Dr. Michael Chen, Manufacturing Technology Expert at the Institute of Production Engineering.
How Insert Molding Works
The process of insert molding follows these basic steps:
- Insert Placement: Operators or automated systems precisely position the insert inside the mold cavity.
- Mold Closing: The mold closes, securing the insert in its intended position.
- Plastic Injection: Molten plastic flows into the mold, surrounding the insert completely.
- Cooling and Solidification: The plastic cools and hardens around the insert, creating a permanent bond.
- Ejection: The finished part is ejected from the mold, with the insert now an integral component.
This seamless integration creates parts that combine the flexibility, lightweight nature, and design freedom of plastics with the strength, conductivity, or other special properties of the insert material.
For manufacturers looking to enhance their insert molding capabilities, understanding both the basics and the technical details is essential for success.
Key Benefits of Using Mold Inserts
Implementing mold inserts in your manufacturing process offers numerous advantages that directly impact product quality, production efficiency, and cost-effectiveness. Let’s explore these benefits in detail.
Enhanced Strength and Durability
One of the most significant benefits of mold inserts is the remarkable strength they add to plastic components. By integrating metal inserts, manufacturers can:
- Increase load-bearing capacity by up to 300% compared to pure plastic parts
- Improve resistance to wear, heat, and environmental factors
- Extend product lifespan significantly, reducing replacement frequency
- Maintain strength while reducing overall part weight
For example, a plastic gear with a metal insert at its core can withstand much higher torque and last many times longer than a pure plastic gear, all while maintaining the lightweight benefits of plastic.
Cost Reduction Through Simplified Manufacturing
Mold inserts deliver impressive cost savings through several mechanisms:
| Cost-Saving Factor | Potential Savings |
|---|---|
| Elimination of secondary assembly operations | 15-40% |
| Reduced material waste | 10-25% |
| Extended mold lifespan | 20-50% |
| Lower labor costs | 30-60% |
| Decreased inventory requirements | 15-35% |
With insert loading automation, these savings can be even more substantial, potentially reaching 80% when implemented with Wanfur’s advanced automation solutions.
“In our experience working with hundreds of manufacturers, those who implement automated insert molding typically see return on investment within 6-9 months, with total cost reductions averaging 45% compared to traditional assembly methods,” notes Sarah Johnson, Operations Director at Global Manufacturing Consultants.
Design Flexibility and Innovation
Mold inserts open up remarkable design possibilities that would be difficult or impossible to achieve with traditional manufacturing:
- Multi-material integration: Combine the best properties of different materials in one component
- Complex geometries: Create intricate shapes and features without additional assembly
- Functional integration: Add electrical conductivity, magnetic properties, or thermal management to plastic parts
- Design freedom: Implement features like internal threads, wear surfaces, or mounting points directly during molding
This design flexibility enables product innovation across industries, from medical devices that combine rigid and flexible components to automotive parts that integrate electrical conductivity with lightweight structures.
Quality Improvements and Consistency
Using mold inserts leads to measurable improvements in product quality:
- More consistent part dimensions and properties
- Reduced defect rates through elimination of assembly errors
- Better performance in challenging environments
- Enhanced reliability and reduced failure rates
- Superior aesthetic finish without visible joining lines
These quality improvements are particularly valuable in industries with strict requirements, such as medical device manufacturing or aerospace applications.
Common Materials Used for Mold Inserts
The selection of appropriate materials for mold inserts is crucial to achieving desired performance characteristics. Different materials offer unique properties that make them suitable for specific applications.
Metal Inserts: Strength and Conductivity
Metal inserts are among the most commonly used due to their excellent strength, durability, and often, electrical or thermal conductivity:
- Stainless Steel: Offers exceptional corrosion resistance and strength. Ideal for medical applications, food processing equipment, and outdoor products that face harsh environments.
- Aluminum: Provides a lightweight alternative with good strength-to-weight ratio and excellent thermal conductivity. Perfect for applications where weight reduction is crucial, such as in aerospace or portable electronics.
- Brass: Features excellent machinability and electrical conductivity. Commonly used for electrical connectors, threaded inserts, and applications requiring good thermal properties.
- Copper and Copper Alloys: Deliver superior electrical and thermal conductivity. Essential for electrical components, heat sinks, and applications requiring rapid heat dissipation.
“Material selection for mold inserts is not just about strength—it’s about finding the perfect balance of properties that complement the plastic matrix while delivering the specific functionality required,” explains Dr. Elena Rodriguez, Materials Science Professor at Technical University of Madrid.
Advanced Alloys for Specialized Applications
For applications with extreme requirements, specialized alloys offer enhanced performance:
- Beryllium Copper: Provides exceptional thermal conductivity combined with high strength and hardness. Ideal for molds with challenging cooling requirements or applications needing rapid heat transfer.
- Inconel: Delivers outstanding heat resistance and strength at high temperatures. Perfect for applications exposed to extreme heat or corrosive environments.
- Tool Steel Alloys: Offer excellent wear resistance and durability. Great for high-volume production where insert longevity is critical.
Non-Metal Options: Engineering Plastics and Ceramics
In certain applications, non-metal inserts provide unique advantages:
- Engineering Plastics (like PEEK or PPS): Offer chemical resistance, reduced weight, and compatibility with the base plastic material. Useful in applications where metal might cause issues with chemical compatibility or where weight is critical.
- Ceramics: Provide excellent wear resistance, electrical insulation, and thermal stability. Ideal for applications requiring electrical isolation or extreme wear resistance.
- Composite Materials: Combine properties of different material types for custom performance characteristics. Used in specialized applications where standard materials don’t meet requirements.
Understanding the properties of these various injection molding materials helps manufacturers select the optimal insert material for each specific application.
Material Selection Factors and Considerations
When choosing materials for mold inserts, several factors must be considered:
| Selection Factor | Considerations |
|---|---|
| Mechanical Requirements | Strength, hardness, fatigue resistance, impact resistance |
| Thermal Properties | Conductivity, expansion coefficient, maximum service temperature |
| Electrical Properties | Conductivity, insulation, EMI shielding capabilities |
| Chemical Compatibility | Resistance to corrosion, chemical attack, and bonding with the host plastic |
| Cost and Availability | Material cost, processing requirements, supply chain reliability |
| Environmental Factors | Recyclability, RoHS compliance, carbon footprint |
For businesses looking to optimize their insert molding processes, consulting with experts can help identify the most suitable materials for specific applications.
How Mold Inserts Improve Manufacturing Efficiency
Beyond their contribution to product quality, mold inserts significantly enhance manufacturing efficiency, leading to streamlined operations and improved productivity. Let’s explore the ways these small components make a big difference in production processes.
Streamlining Production Through Process Integration
Insert molding combines what would traditionally be multiple manufacturing steps into a single, efficient process:
- Elimination of Secondary Operations: Components that would normally require assembly, welding, or adhesive bonding after molding are created in one step
- Reduced Handling: Fewer production steps mean less part handling, decreasing labor costs and damage risk
- Consolidated Supply Chain: Fewer separate components simplify inventory management and reduce supplier coordination
- Decreased Quality Control Points: With fewer assembly steps, there are fewer opportunities for defects to occur
These integrations can reduce total production time by 30-60% compared to traditional manufacturing methods that require separate molding and assembly operations.
“When we implemented automated insert molding for our automotive connector line, we saw cycle times decrease by 45% while simultaneously improving first-pass yield rates by 28%,” reports Thomas Zhang, Production Manager at Advanced Components International.
Rapid Design Changes and Modifications
Mold inserts facilitate agile manufacturing by enabling quick adaptations to changing requirements:
- Modular Mold Design: Only specific inserts need changing rather than entire molds
- Faster Iterations: Design improvements can be implemented quickly without creating completely new tooling
- Lower Modification Costs: Changing inserts costs significantly less than building new molds
- Reduced Time-to-Market: Product updates can reach production faster, maintaining competitive advantage
For companies using metal injection molding automation, the ability to quickly change inserts while maintaining automated efficiency provides a substantial competitive advantage in fast-evolving markets.
“`
“`html
Extended Mold Life and Reduced Maintenance
Mold inserts significantly extend tooling longevity and reduce maintenance requirements:
- Replaceable Wear Points: High-wear areas can be addressed by replacing just the insert rather than the entire mold
- Targeted Maintenance: Repairs can focus on specific areas without disrupting the entire mold
- Improved Ventilation: Properly designed inserts enhance gas venting, reducing defects and mold damage
- Optimized Cooling: Inserts can incorporate specialized cooling channels for better temperature management
This approach to maintenance can extend overall mold life by 200-300% while reducing downtime by up to 70%, according to industry studies.

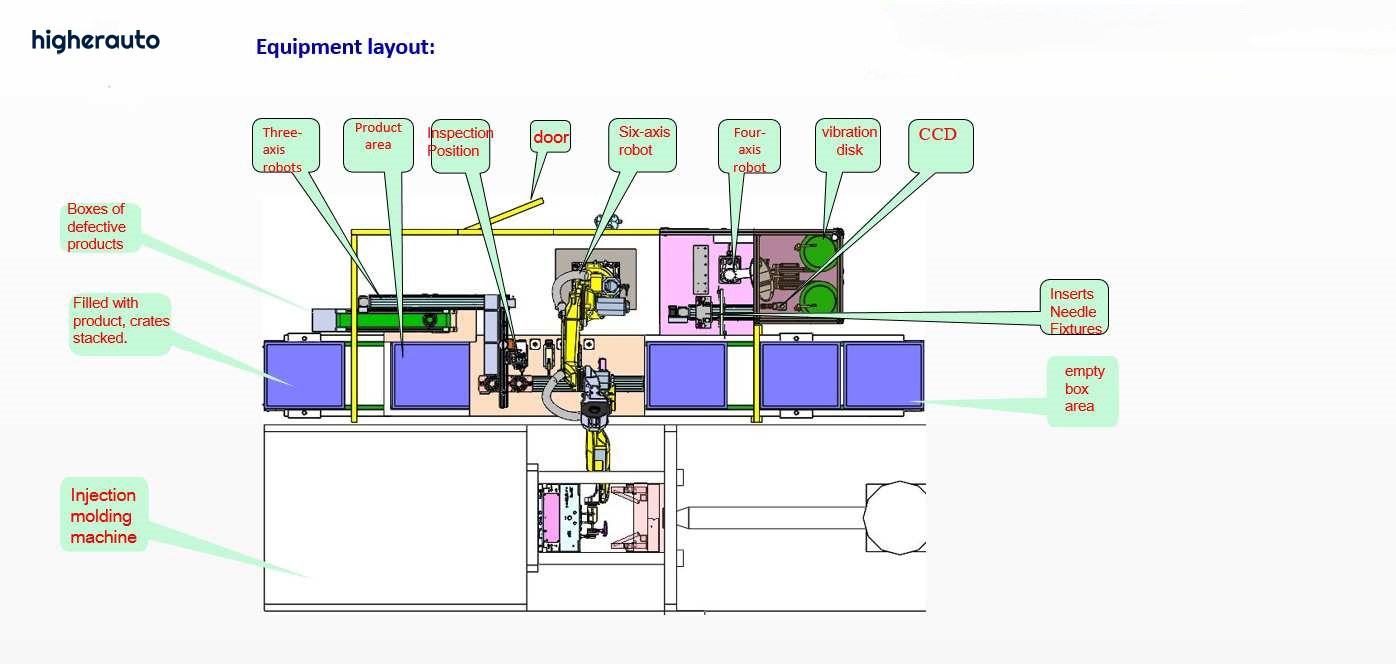

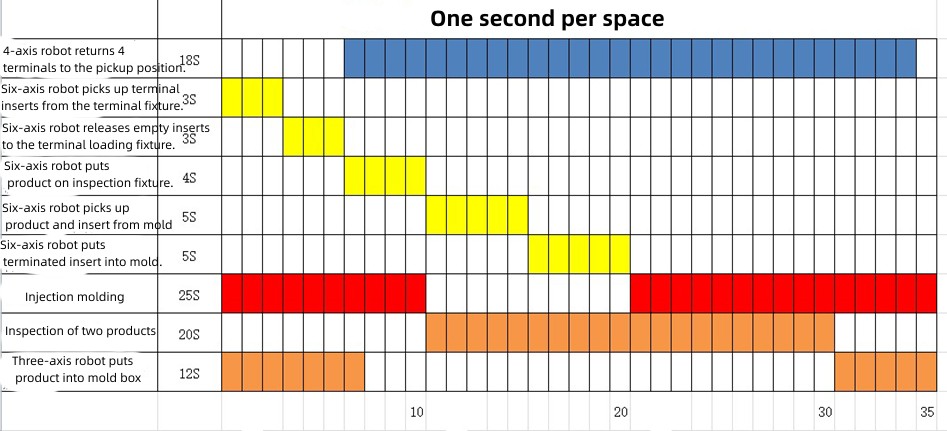

Automation Compatibility and Labor Reduction
Modern insert molding processes are highly compatible with automation, creating additional efficiency gains:
- Robotic Insert Placement: Automated systems can place inserts with greater precision and consistency than manual methods
- Reduced Labor Requirements: Automation can decrease labor needs by 50-90% compared to manual assembly
- 24/7 Production Capability: Automated insert molding can run continuously with minimal supervision
- Consistent Quality: Machine precision eliminates variations inherent in manual processes
At Wanfur Industry, our insert loading automation solutions have helped manufacturers achieve labor reductions of up to 80% while simultaneously improving quality and throughput.
“The future of insert molding is undeniably automated. Companies that embrace this technology now are positioning themselves years ahead of competitors in terms of efficiency, quality, and production capacity,” states Robert Johnson, Automation Director at Manufacturing Technology Institute.
Material Optimization and Waste Reduction
Insert molding contributes significantly to sustainability efforts through material efficiency:
| Efficiency Factor | Traditional Method | Insert Molding | Improvement |
|---|---|---|---|
| Material Waste | 8-15% | 2-5% | 60-75% reduction |
| Energy Consumption | 100% (baseline) | 65-80% | 20-35% reduction |
| Reject Rate | 3-7% | 0.5-2% | 70-85% reduction |
| Total Component Weight | 100% (baseline) | 70-85% | 15-30% reduction |
These improvements align with sustainable manufacturing practices while simultaneously reducing production costs and environmental impact.
Industrial Applications of Mold Inserts
Mold inserts have found their way into virtually every industry that uses plastic components, revolutionizing product design and manufacturing capabilities. Let’s explore the most significant applications across key sectors.
Automotive Industry: Performance and Safety
The automotive sector relies heavily on mold inserts to create components that combine strength, electrical functionality, and weight reduction:
- Sensor Housings: Protective casings with integrated metal contacts for engine management, safety systems, and driver assistance technologies
- Electrical Connectors: Durable connectors that maintain reliable electrical contact in harsh environments
- Structural Components: Lightweight but strong parts that integrate metal reinforcement for crash safety
- Fluid Management Systems: Fuel and coolant components with embedded metal fittings for secure connections
- Interior Controls: Knobs, switches, and interfaces that combine aesthetic plastics with functional metal elements
For automotive manufacturers, mold inserts have been instrumental in meeting increasingly stringent requirements for weight reduction, safety performance, and electronic integration.
“Insert molding has been a game-changer for automotive electronics. We’ve achieved 40% weight reduction while simultaneously improving thermal performance and reliability in harsh under-hood environments,” explains James Wilson, Chief Engineer at Automotive Systems International.
Medical and Healthcare: Precision and Reliability
The medical industry demands the highest levels of precision, biocompatibility, and reliability—requirements that mold inserts help fulfill:
- Surgical Instruments: Ergonomic plastic handles with metal working ends, combining comfort with precision
- Implantable Devices: Components that integrate electronics with biocompatible plastics
- Drug Delivery Systems: Precision mechanisms with metal components embedded in medical-grade plastics
- Diagnostic Equipment: Durable housings with integrated connection points for electrical systems
- Sterilizable Equipment: Devices that can withstand repeated sterilization cycles without degradation
Our work with medical device manufacturers has demonstrated how critical mold inserts are for creating products that meet strict regulatory requirements while performing reliably in clinical settings.
Consumer Electronics: Miniaturization and Functionality
The electronics industry leverages mold inserts to create smaller, more capable devices with enhanced durability:
- Connectors and Ports: Durable connection points that withstand thousands of insertion cycles
- Structural Components: Reinforced frames and mounting points that provide strength in thin profiles
- Heat Management: Integrated heat sinks and thermal pathways for efficient cooling
- EMI Shielding: Metal inserts that protect sensitive electronics from electromagnetic interference
- Waterproofing Elements: Sealed interfaces combining plastic with metal for environmental protection
These applications have enabled the remarkable evolution of consumer electronics toward smaller, more durable, and more feature-rich devices that we all rely on daily.
Industrial Equipment: Durability and Function
In industrial applications, mold inserts create components that withstand extreme conditions while providing essential functionality:
- Pump and Valve Components: Plastic housings with metal threads and wear surfaces for fluid handling
- Control Systems: Durable interfaces that combine electrical functionality with environmental protection
- Machinery Guards and Covers: Lightweight but impact-resistant protective components
- Pneumatic Fittings: Pressure-resistant connections with integrated metal reinforcement
- Bearings and Bushings: Self-lubricating plastic with metal reinforcement for mechanical applications
For companies operating industrial equipment, mold inserts provide the perfect balance between cost-effective manufacturing and long-term durability in challenging environments.
“In our chemical processing equipment, we’ve replaced traditional all-metal components with insert-molded alternatives, resulting in 35% cost reduction, 60% weight reduction, and—surprisingly—a 25% increase in service life due to improved corrosion resistance,” notes Jennifer Lee, Process Engineering Director at Chemical Processing Solutions.
Design Considerations for Mold Inserts
Creating effective mold inserts requires careful attention to design principles that ensure functionality, manufacturability, and cost-effectiveness. Let’s explore the key considerations that designers and engineers should keep in mind.
Geometric Design and Tolerancing
The physical shape and dimensional specifications of mold inserts significantly impact both manufacturing feasibility and final part performance:
- Rounded Corners: Use radii between 0.3–1.0 mm to improve manufacturability and reduce stress concentration
- Draft Angles: Include 1-3° draft on vertical surfaces to facilitate part ejection
- Wall Thickness: Maintain uniform wall thickness around inserts to prevent warping and sink marks
- Tolerance Control: Design with appropriate tolerances based on insert function (typical range: ±0.05 mm to ±0.2 mm)
- Positioning Features: Include locating features to ensure precise insert placement during molding
For complex designs, professional design consultation can help ensure that inserts meet both functional requirements and manufacturing constraints.
Material Compatibility and Bonding Considerations
The interface between insert and plastic material requires careful material selection and design:
| Plastic Material | Recommended Insert Materials | Surface Treatment |
|---|---|---|
| Polypropylene (PP) | Stainless steel, brass | Knurling, undercuts |
| Polyamide (PA/Nylon) | Aluminum, steel, brass | Knurling, sandblasting |
