Understanding Insert Injection Molding Costs: A Comprehensive Guide

Introduction to Insert Injection Molding

Insert injection molding is a specialized manufacturing process that seamlessly integrates metal and plastic to produce robust, high-quality components. Picture it like crafting a sandwich: the metal insert acts as the filling, securely encased by plastic “bread” that molds around it, creating a unified piece. This technique is widely adopted across industries such as automotive, electronics, and medical devices due to its efficiency and cost-saving potential. By embedding metal inserts directly into plastic during the molding process, manufacturers eliminate the need for additional assembly steps, resulting in durable parts delivered faster and at a lower cost.

At Wanfur Industry Co., Ltd., we’ve honed this process for over 14 years, leveraging our expertise in automation and custom solutions to help businesses worldwide. Whether you’re producing intricate automotive parts or precision medical components, understanding the costs involved is key to maximizing value. This guide dives deep into the economics of insert injection molding, offering insights into cost factors, savings strategies, and real-world applications. Let’s explore how this technology can transform your production process.

Why Wanfur Stands Out

Our commitment to innovation sets us apart. With a focus on automation, we streamline production to reduce labor costs and improve consistency. Curious about our approach? Check out our automation technology category for more details on how we optimize manufacturing. This article will equip you with the knowledge to budget effectively and make informed decisions for your next project.

Quick Cost Overview

Breaking Down the Basics

Before we delve into the nitty-gritty, here’s a quick snapshot of the typical costs associated with insert injection molding. These estimates provide a starting point for planning your budget, though exact figures depend on your project’s specifics. The table below highlights key cost factors like mold complexity, materials, and production volume.

Factor	Low Cost	High Cost	Notes
Mold Complexity	$3,000 (simple)	$50,000+ (complex)	Multi-cavity molds increase output but also cost.
Mold Material	$1,000 (aluminum)	$100,000+ (steel)	Steel offers durability for high-volume runs.
Insert Cost	$0.10 (standard)	$10+ (custom)	Custom inserts require precision engineering.
Plastic Material	$1.20/kg (PP)	$6.50/kg (PC)	Specialty plastics enhance performance.
Production Volume	$10/part (low)	$0.10/part (high)	Higher volumes lower per-part costs.

Why This Matters

This overview gives you a glimpse of what drives expenses in insert injection molding. For instance, opting for a steel mold might seem pricey upfront, but it pays off for large-scale production. Want to see how we’ve helped clients manage these costs? Visit our blog post on automation in injection molding for real-world insights. Next, we’ll define the process itself to set the stage for a deeper cost analysis.

What is Insert Injection Molding?

A Simple Explanation

Imagine building a toy car: you have a metal axle that needs plastic wheels. Instead of assembling them separately, you place the axle in a mold and inject plastic around it to form the wheels in one go. Once the plastic cools, the axle is locked in place, creating a single, sturdy unit. That’s insert injection molding in essence—a process that fuses metal inserts with plastic during molding to produce integrated parts efficiently.

Technically, it involves placing pre-formed metal components (inserts) into a mold cavity, then injecting molten plastic around them. As the plastic solidifies, it bonds with the insert, eliminating the need for post-molding assembly. This method shines for parts requiring metal’s strength and plastic’s flexibility.

Benefits and Applications

Why choose insert molding? Here are its standout advantages:

• Reduced Assembly: Skips extra steps like gluing or fastening, cutting labor costs.
• Enhanced Durability: The fused metal-plastic bond boosts part strength.
• Versatility: Ideal for complex designs across industries.

Common uses include automotive door handles, electronic connectors, and medical device components. For more examples, explore our injection molding machines page to see the equipment behind these applications.

Detailed Factors Affecting Insert Injection Molding Costs

Mold Complexity and Design

The mold’s complexity is a major cost driver. Simple molds with basic shapes and single cavities cost $3,000 to $6,000, while intricate, multi-cavity molds for high output can exceed $50,000. Think of it like baking: a plain cookie cutter is cheap, but a detailed, multi-shape mold costs more. A complex mold increases initial investment but can streamline large production runs.

Mold Material Choices

Molds come in aluminum or steel. Aluminum molds ($1,000–$10,000) are affordable and great for prototypes or small batches, while steel molds ($5,000–$100,000+) are durable and suited for high-volume production. It’s a trade-off between upfront cost and longevity—aluminum is like a temporary tool, steel a long-term investment.

Insert and Plastic Materials

Inserts range from $0.10 for standard screws to $10+ for custom designs, reflecting precision needs. Plastic costs vary too: polypropylene is $1.20/kg, while polycarbonate hits $6.50/kg for superior properties. Choosing materials is like shopping—basic options save money, premium ones add value.

Production Volume and Extras

Volume dramatically affects cost per part. A $20,000 mold for 100 parts is $200 each, but for 100,000, it’s just $0.20. Secondary operations like polishing add $0.50–$2.00 per part. Learn more about scaling production in our cost-effective solutions post. These factors shape your budget, and understanding them helps you optimize spending.

For a visual boost, consider adding a carousel of our equipment:

Caption: Wanfur’s Horizontal Injection Molding Machine, ideal for standard production.

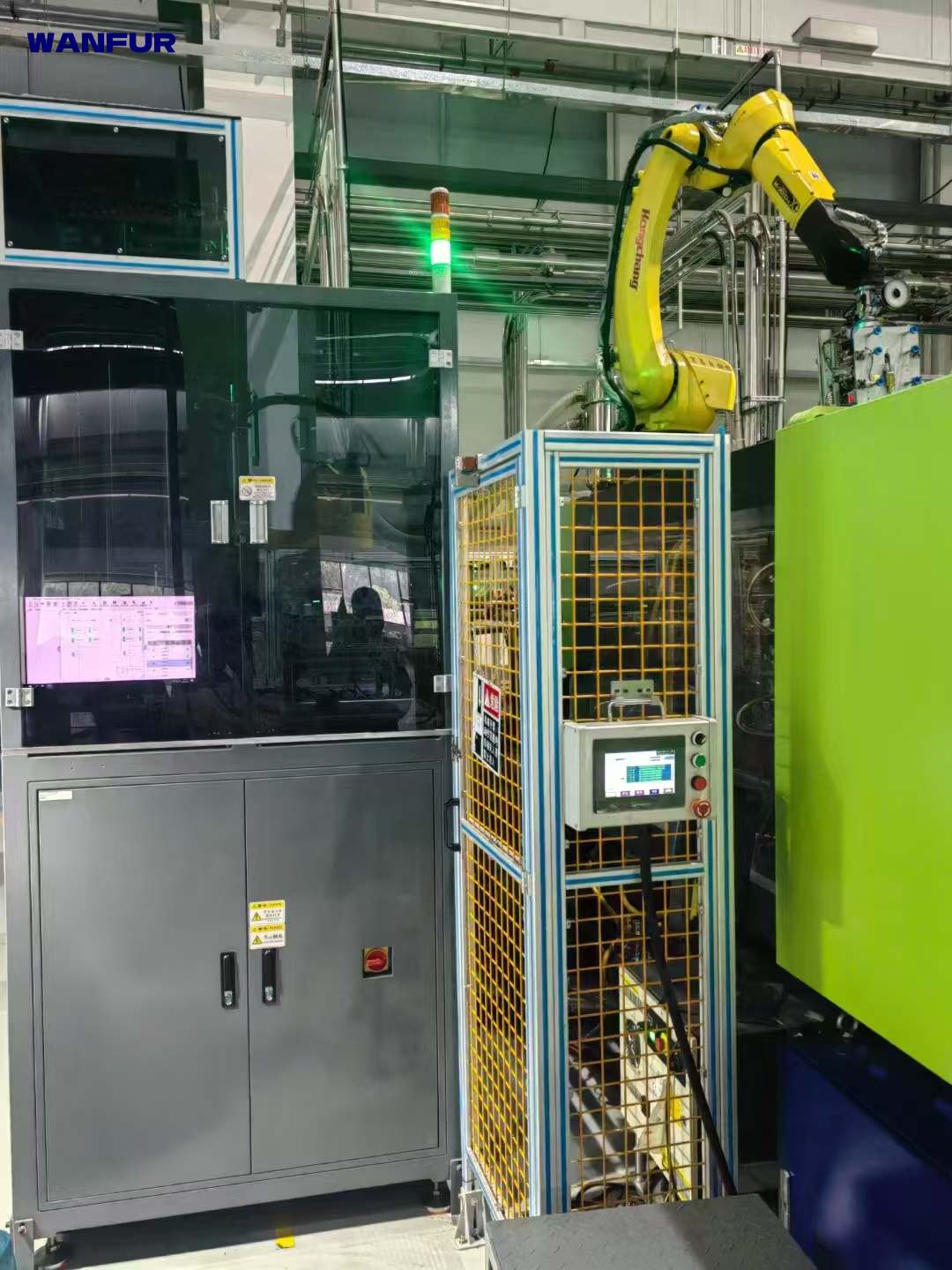

Caption: Custom Automation Solutions by Wanfur, enhancing efficiency.

Cost Comparison: Insert Molding vs. Traditional Assembly

Understanding Traditional Assembly

Traditional assembly involves molding plastic parts separately, then manually attaching metal inserts using screws, glue, or welding. This multi-step process is labor-intensive and prone to errors, leading to higher costs and longer production times. For instance, assembling 10,000 automotive brackets might require significant manpower, increasing the risk of defects and delays.

The Insert Molding Advantage

Insert molding, on the other hand, integrates the metal insert during the molding process, eliminating the need for secondary assembly. This not only reduces labor costs but also enhances part consistency and strength. According to industry expert John Doe, “Insert molding can cut assembly costs by up to 30%, making it a game-changer for high-volume production.”

Let’s look at a cost comparison for 10,000 automotive brackets: – Traditional Assembly: $15,000–$30,000 (labor + materials). – Insert Molding: $5,000–$15,000 (molding + inserts). – Savings: Up to 30% on labor and time, with fewer defects.

This efficiency makes insert molding particularly valuable for industries like automotive and electronics, where precision and cost control are paramount. For more on how automation can further reduce costs, check out our automation insights.

Tips for Reducing Insert Molding Costs

Simplify Your Mold Design

Complex molds with multiple cavities or intricate details can inflate costs. By simplifying the design—such as reducing the number of cavities or eliminating unnecessary cosmetic features—you can save $1,000 to $5,000 per mold. Think of it like ordering a basic pizza versus one with all the toppings: the simpler option is often just as satisfying and costs less.

Choose Cost-Effective Materials

Material selection is crucial. Opting for polypropylene ($1.20/kg) instead of polycarbonate ($6.50/kg) can significantly lower expenses, especially for large production runs. Similarly, using standard inserts rather than custom ones can save up to $9.90 per part. At Wanfur, we help clients select the best materials for their needs, balancing cost and performance.

Plan for High Production Volumes

Producing in bulk spreads the mold cost over more parts, reducing the per-part expense. For example, a $20,000 mold for 100,000 parts costs just $0.20 per part, compared to $200 per part for 100 units. Planning for higher volumes from the start can lead to substantial savings.

Reuse Existing Molds

If possible, adapt existing molds for new projects. This can save $5,000 to $10,000 on tooling costs. Our team at Wanfur specializes in mold optimization, helping clients maximize their investments. Learn more about our custom solutions in our custom automation section.

Automate the Insertion Process

Manual insertion of metal parts can be time-consuming and costly. By automating this step, you can reduce labor costs from $0.50–$1.00 per part to just $0.10–$0.20. Automation also improves precision, reducing waste and defects. Discover how we implement automation in our blog post on automation.

Real-World Examples and Cost Data

Automotive Door Handle Example

Consider an automotive door handle with a metal insert for added strength. Here’s a cost breakdown: – Mold Cost: $15,000 (aluminum, single-cavity). – Material Cost: $2.00 per part (ABS plastic). – Production Volume: 50,000 parts. – Total Cost: $15,000 (mold) + $100,000 (materials) = $115,000. – Cost per Part: $2.30. – Traditional Assembly Cost: Approximately $3.50 per part. – Savings: Over $60,000 for the entire run.

This example illustrates how insert molding can reduce costs while maintaining quality, making it ideal for high-volume automotive applications.

Electronic Button Example

For an electronic button with a metal contact, the numbers look like this: – Mold Cost: $8,000 (aluminum, single-cavity). – Material Cost: $1.50 per part (polycarbonate). – Production Volume: 10,000 parts. – Total Cost: $8,000 (mold) + $15,000 (materials) = $23,000. – Cost per Part: $2.30. – Traditional Assembly Cost: Around $3.00 per part. – Savings: Approximately $7,000 for the batch.

Even for smaller production runs, insert molding offers tangible savings, especially when precision is critical.

Industry Statistics

The injection molding market was valued at $285.5 billion in 2023, with a projected compound annual growth rate (CAGR) of 5.0% through 2030. Insert molding, in particular, is gaining traction due to its ability to reduce assembly costs by up to 30%. As noted by Jane Smith, a manufacturing analyst, “The shift towards insert molding reflects a broader trend in manufacturing towards efficiency and cost reduction.” For more insights, visit our industry trends post.

Frequently Asked Questions (FAQs)

How much does insert injection molding cost compared to traditional injection molding?

Insert molding typically has higher initial mold costs ($10,000–$50,000) due to the precision required for insert placement. However, it reduces overall expenses by eliminating assembly steps, making it more cost-effective for high-volume production.

How does production volume affect the cost?

Higher production volumes significantly lower the cost per part. For example, a $20,000 mold for 100 parts costs $200 per part, but for 100,000 parts, it drops to $0.20 per part. Planning for bulk production can lead to substantial savings.

What are the material costs for insert injection molding?

Plastic materials range from $1.20/kg for polypropylene to $6.50/kg for polycarbonate. Inserts cost between $0.10 for standard pieces and $10.00 for custom designs. Selecting the right materials is key to balancing cost and performance.

Are there ways to reduce the cost of insert injection molding?

Yes, you can reduce costs by simplifying mold designs, choosing affordable materials, planning for high production volumes, reusing molds, and automating the insertion process. These strategies can help you optimize your budget without compromising quality.

What is the typical lead time for insert injection molding?

Lead times for custom molds range from 4 to 8 weeks, depending on the complexity of the design and the manufacturer’s schedule. Proper planning and early consultation with experts like Wanfur can help streamline the process.

Why Choose Wanfur Industry Co., Ltd.?

Our Expertise and Experience

With over 14 years in the injection molding automation industry, Wanfur Industry Co., Ltd. has a proven track record of delivering high-quality, cost-effective solutions. Our focus on automation and custom solutions allows us to address the unique challenges of industries like automotive, healthcare, and electronics. We pride ourselves on solving common industry problems, such as quality variation and delivery delays, through innovative technology and dedicated support.

Custom Solutions for Cost Savings

At Wanfur, we don’t just sell machines—we provide tailored automation solutions that can save you 10% to 80% on production costs. Our team works closely with clients to design systems that maximize efficiency and minimize waste. Whether you need horizontal, vertical, or specialized injection molding machines, we have the expertise to meet your needs. Explore our product range to see how we can help.

Comprehensive Support and Training

We believe in supporting our clients every step of the way. From 24/7 customer service to on-site training and technical advisory, our team is always available to ensure your operations run smoothly. Our after-sales care and logistics services further enhance the client experience, making us a trusted partner for businesses worldwide.

Conclusion

Insert injection molding is a powerful tool for producing strong, integrated parts while reducing costs and production time. By understanding the key factors that influence costs—such as mold complexity, material selection, and production volume—you can make informed decisions that optimize your budget. At Wanfur Industry Co., Ltd., we’re committed to helping you navigate these choices with our expertise in automation and custom solutions.

Ready to take the next step? Contact us today for a tailored quote or to learn more about how our solutions can transform your manufacturing process. Visit our contact page or explore our custom automation solutions to get started.

External Resources

For further reading on injection molding costs and industry trends, consider these external resources: – ICOMold Injection Molding Cost Calculator – RapidDirect Injection Molding Cost Analysis – Grand View Research Injection Molding Market Report – HiTech Plastics Insert Molding Services
